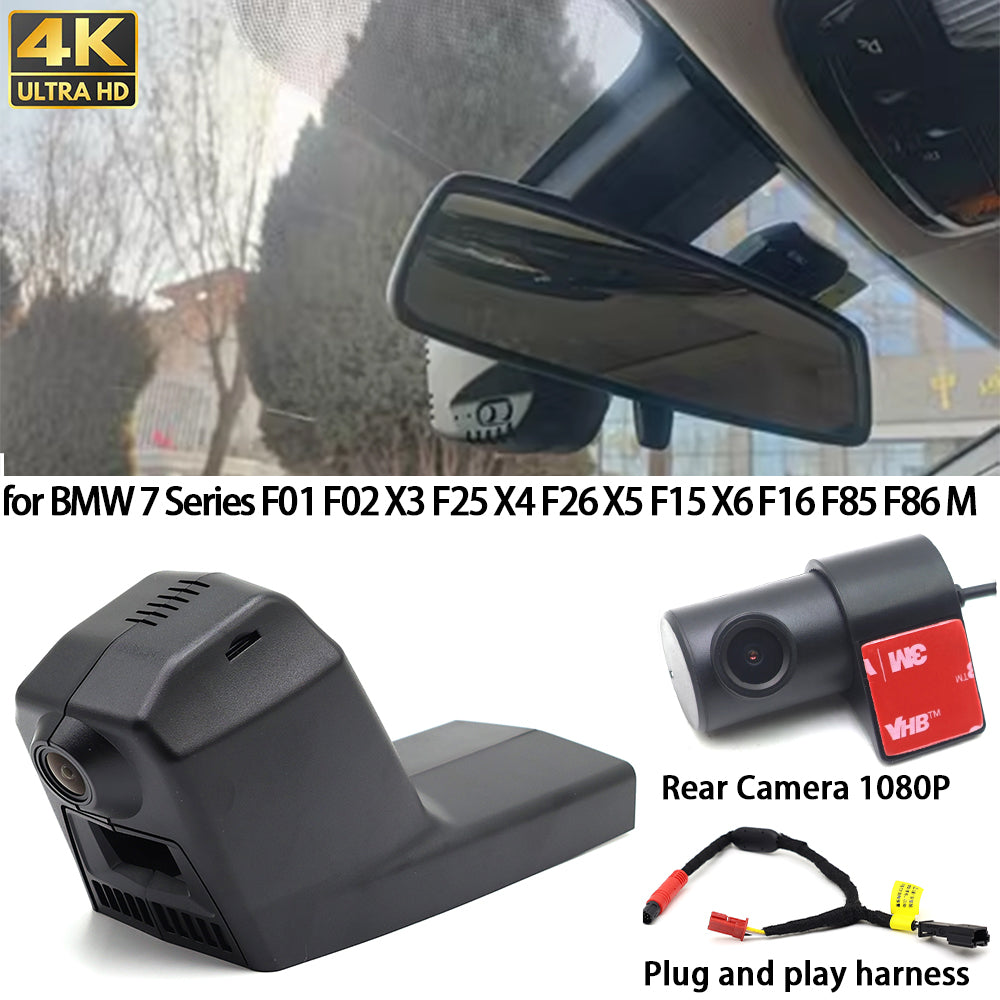

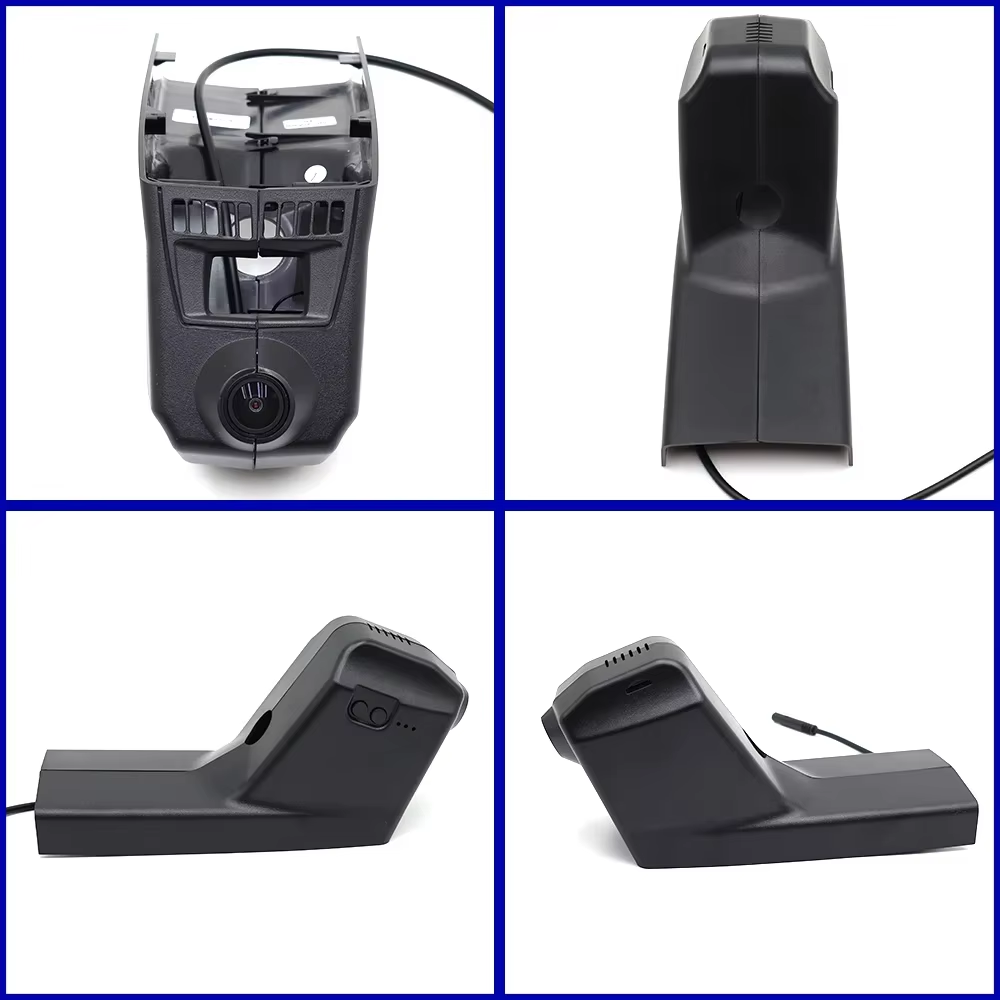

for BMW 7 Series F01 F02 X3 F25 X4 F26 X5 F15 X6 F16 F85 F86 M 4K Dash Cam Wifi Camera Video Recorder

Specifications:

Recording function: Continuous loop recording on or off
Sensor: Sony IMX415 (18 megapixel)/Novatek 96670
Camera angle: 170 degrees wide angle
White balance: automatic
Night vision: low light work
WDR: Support
WiFi: Support
Video encoding format: H.265 video encoding/HD MOV format
Front camera video resolution: UHD 2160P, (3840 * 2160)
Rear camera video resolution: ultra-high definition 1080P (optional)
Frame rate per second: 60 (single shot)/60 (dual shot)
Language: Supports most languages
Loop video editing: 3/5/10 minutes optional
Gravity sensing: three-axis solid collision acceleration sensor
Memory: SD card 64-256GB (C10)
Seamless video: support
Loop video playback: supported
OSD languages: English, Japanese, French, Spanish, German, Portuguese, Italian, Traditional Chinese, Simplified Chinese, Russian, and other languages
APP language: English, Simplified Chinese

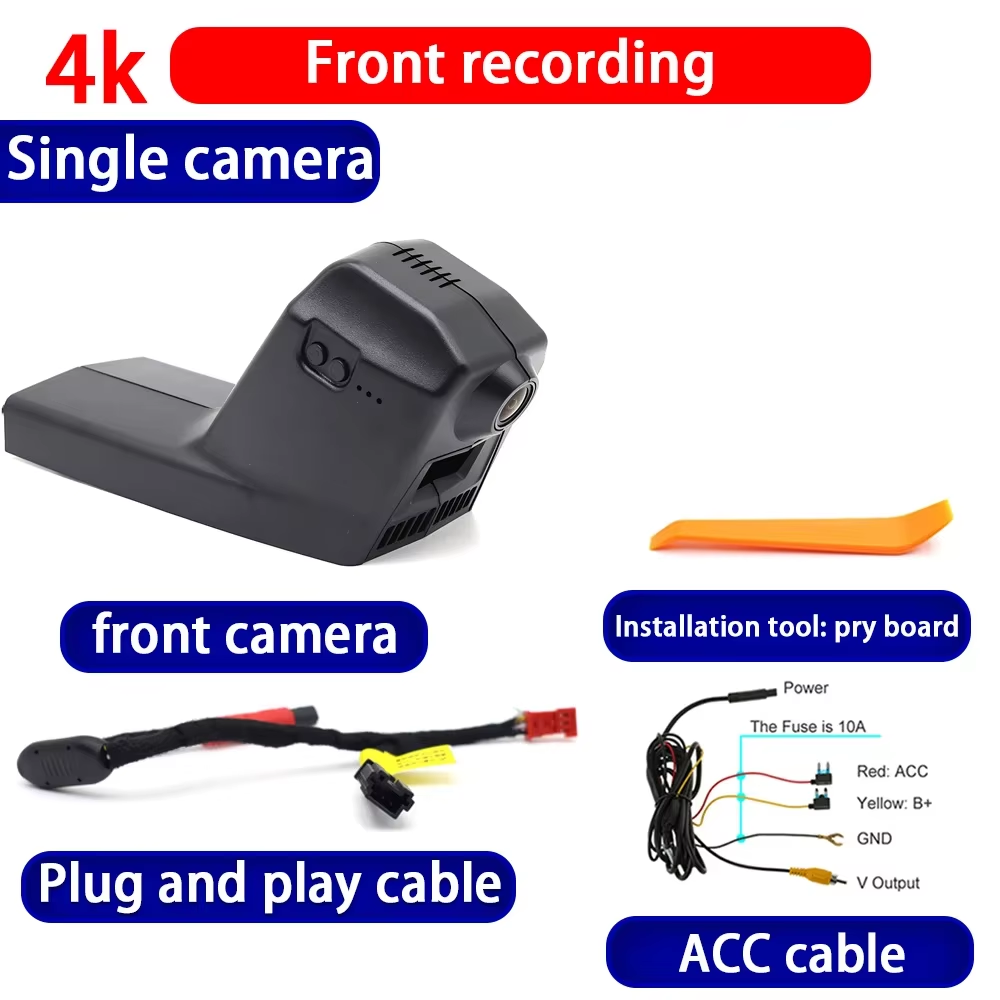

Multiple power supply methods

According to different vehicle models, there are four power supply methods that comply with vehicle regulations to choose from

1, Plug and play cable power supply (can install products independently) (supports all models)
2, USB socket power supply,the car version with built-in USB socket can choose the front 4K Dash Cam model, but it does not support front and rear Dash Cam models due to insufficient USB voltage. (supports some models)
3, ACC fuse box power supply (supports all models)
4,OBD power cord.(supports all models)Our order defaults to shipping a fuse ACC power cord. If you need an OBD power cord, please contact us in advance or leave a note in the order.

4K Ultra HD High Resolution

Equipped with Novatek's flagship chip, it will not crash even under high-intensity work. With an 8 megapixel lens, it can record up to 2160P video, and provide professional 30fps video, which can vividly capture your driving moments and record detailed evidence.

f/1.6 Big Aperture &Night Vision

f/1.6 aperture lens is better than f/2.0 aperture lens in color accuracy and clarity under high light and low light conditions.With DOL-HDR technology and night vision function, it can automatically balance exposure to present brilliant colors no matter day or night. Meet the night monitoring requirements.

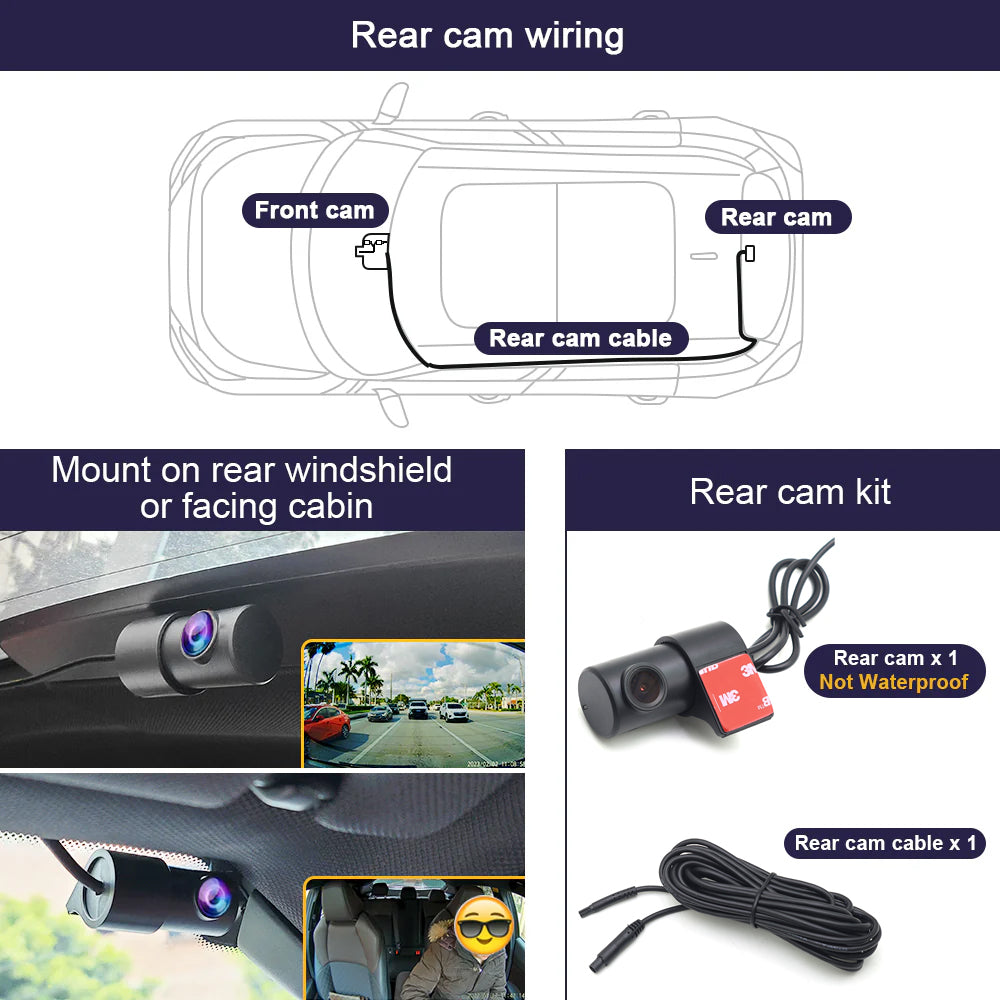

360° manual rotation Rear Dash Cam 1080P

The Rear Dash Cam has a full HD 1080P and can shoot at a wide angle of 140 °. It can be manually rotated 360 ° to capture the inside of the car.
(Installed on the rear windshield inside the car)

Novatek 96670 Flagship chip

The newly upgraded Novatek 96670 processor, makes the recording very smooth and high-definition, saying goodbye to crashand card leakage.

Connect WiFi Control

You can control the DVR by connected mobile phonevia WiFi, like recording video, the file recorded video from the overwriting.taking photo, playback preview,parameter settings, etc.With the built-in Wi-Fi, you can view and download the recorded videos to your phone via the Viidure application.Based on privacy and security considerations, the dash cam's WiFi cannot be connected to the Internet. Only a short distance (about 9fts) can be connected to the mobile phone via Viidure APP.

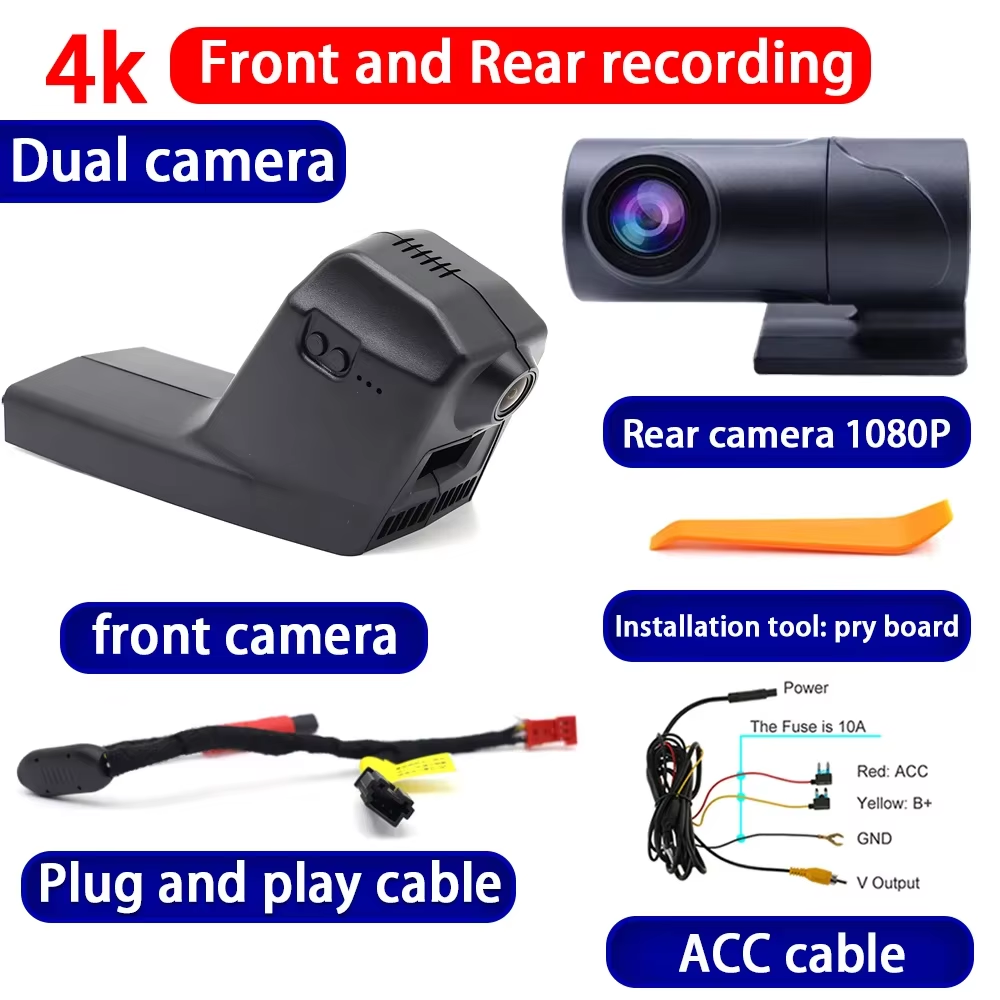

Front and Rear Dual Cameras

Shoot more content, predict more risks, truly restore the shooting range, refuse to crop, very reliable and all-round inclusion of the picture, rest assured during the journey.

Loop Recording

Auto overwrite the oldest videos with the newest when card reaches capacity.( Support 256GB SD card Max.)
When the car starts, the driving recorder will automatically turn on. When the car is locked, the driving recorder will automatically turn off.

Wide Dynamic Range

WDR sighnificantly improve image clarity by reducing noise and adjusting exposure balance, ensure clear recording in bright and dark light and capture high definition, realistic image.

HEVC/H.265 video coding

50% better than H.264 video encoding performance
Make the image details richer, and the color
details are more realistic.

G-Sensor & Lock

Automatically detect sudden collisions during driving, and immediately save the relevant lens video to the file to prevent overwriting, thereby protecting your video evidence.

Large storage card with 256GB capacity

Storage has broken through to 256GB, making capacity no longer a stumbling block.
The flagship chip's bandwidth brings a significant breakthrough in scalability, supporting 64G to 256G storage cards, and conventional machines can support up to 32G of memory, increasing storage capacity by 8 times.

24 Hours Parking Monitor

No need to start the vehicle, the dash camera will start recording when it senses the shaking of the vehicle, standby for 24 hours, save power, and will not damage the battery.Only by using a fuse ACC power cord or OBD power cord can the parking monitoring mode be supported.

ACC Fuse Wiring Detailed Guide

1.Follow the manual of your car or search the information from internet to find your car fuse box ,open the box with the plastic pry tool (if you have to use it ).
2.Use the electro probe ,find the ACC power fuse and Constant power fuse ,we recommend you use reading lamps , headlights, tail lamps , turn signals, power windows fuse to supply for the Constant power (if they are constant power fuse ). ACC power: When you plug your car key then turn it to ACC ,the power will work .if you turn your car Key to Lock or unplug your car ,the power will be off .Connect the red wire (ACC) with the ACC power fuse .
Constant power : plug or unplug your car key ,the power is uninterrupted .Connect the yellow wire ( B+ ) with the Constant Power fuse .
3.For some cars ,you have to cut the wires , refit them then connect them with the car fuses .Then plug the fuse to where it is .The GND wire (black ) to connect it with steel plate or screw .
4.Connect the car DVR with the wires ,then turn your car key to ACC ,test the car DVR can work or not .Connect your smart phone with the car DVR via WiFi ,open the app as Viidure to manipulate the car DVR and find the best installation position .
5.Tthen fix the wires ,finish the installation , feel at ease to use.

20 reasons to choose a hidden WIFI recorder：

1. The original appearance of the original car (created in the original car style, dedicated car, more concise and more beautiful)
2. Reduce hidden danger (no battery, avoid explosion, do not block the original car anti-glare rearview mirror)
3. Upgrade of the original car (non-destructive installation, does not damage any lines of the original car, does not affect the vehicle warranty)
4. Hidden wiring (avoid cluttered wires, affecting the neatness and beauty, and not occupying the USB port of the car charger)
5. Car temperature resistance (using low power consumption components, excellent heat dissipation, temperature resistance -20℃-+80℃)
6. Environmental protection shell (using environmental protection material ABS+PC fireproof material, meeting EU standards)
7. Ultra-high configuration (high-end 2160p full hd Hidden Wifi Dash Camera professional-grade photosensitive camera, excellent recording effect)
8.6 glass lens (the first layer shrinks light, the second layer corrects light, the third layer blocks clutter, the fourth layer improves penetration, the fifth layer corrects color, and the sixth layer improves sharpness)
9. Super high-definition (recording resolution 2160p full hd Hidden Wifi Dash Camera 30fps, high-definition night vision enhancement, you can also shoot large movies)
10. Loop recording (H.265 lossless pressure loss, seamless loop coverage of video, no missing detection, no exposed seconds)
11. Super wide-angle (170° super wide-angle, bring us a comprehensive and safe visual experience, so that the view is unobstructed)
12. Super stable (10 years + imaging solution and high configuration hardware)
13. Super long life (dual-core processing chip + peripheral original brand components)
14. Intelligent interconnection (built-in 2.4G ultra-high-speed image transmission WIFI module, wireless connection to mobile phones)
15. Custom APP (customized intelligent control system, suitable for IOS and Android dual system operation)
16. Network sharing (mobile phone APP operation, 0 traffic download, playback, network sharing pictures, videos)
17. Simple installation (the fuse box takes power and the OBD is inserted, the installation is safer and simpler)
18. Parking monitoring (built-in enhanced G-SENSOR really realizes the automatic start-up recording of collision and lock files)
19. Dynamic adjustment (super software algorithm, automatically adjust the image effect under strong light or extremely dark state)
20. The market just needs (for your safety and theirs, please choose a high-quality driving recorder installed on the car, if a special situation occurs, it will help you record it as your evidence and protect your safety)
